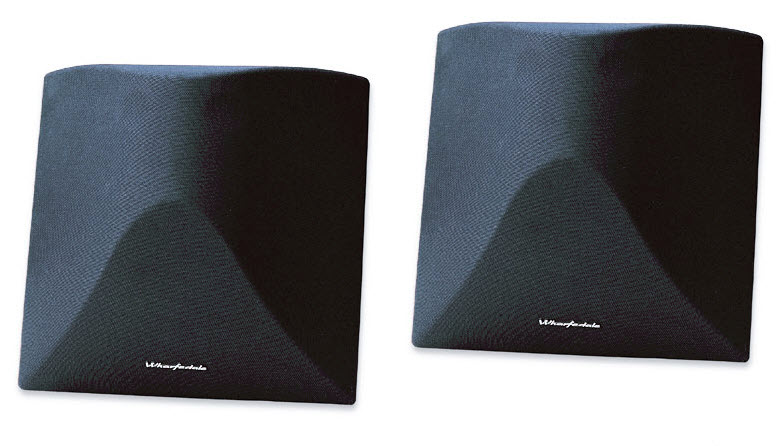

Wharfedale WH-DFS Surround Speaker

Wharfedale WH-DFS Surround Speaker

The Wharfedale WH-DFS  is designed to be unobtrusive and elegant, yet without any compromise in performance, the Wharfedale WH-DFS Diffuse surround speaker is the ideal solution for multi-functional rooms and lounges with Home Cinema or multi-function systems. Using the same arrangement of drive units as the larger models which are used in movie theatre and halls, the Wharfedale WH-DFS  produces the same direct and ambient sound fields, yet are lighter and smaller, finished with a non-removable black cloth grille making them ideal for home surround.

DFS stands for Diffuse Field Surround, an ideal for the reproduction of rear surround effects in a bipolar speaker specifically designed and engineered for rear or sidewall mounting. It produces both ambient and direct sound for accurate stereo rear effects. A good rear sound requires both ambient sound and pinpoint stereo imaging. With the Wharfedale DFS speaker, you can recreate a convincing and realistic rear sound field using a single pair of speakers.

The profiled baffle of the Wharfedale WH-DFS provides exceptional dispersion characteristics for an open and revealing sound while the extruded triangular cross-section is essential for the acoustic nature of the rear sound field.

Tonal matching of a Home Cinema is achieved by using the KEVLAR cones with KEVLAR or carbon-based front speakers, whilst the polypropylene version is more appropriate for other cone materials such as paper/pulp-based cones, or indeed, other polypropylene-based models.

Although designed to be wall-mounted, these DFS Speakers can also be shelf or stand mounted. The badge can easily be rotated to match the orientation of the speaker wherever you choose to locate it.

Specifications of the Wharfedale WH-DFS Surround Speaker

• Format Surround
• Bass Driver 2 x 100mm
• Tweeter Dome 25mm
• Power Handling 15-200W
• Impedance 6 Ohms
• A/V Shielded No
• Sensitivity(2.83V @ 1m) 86dB
• Frequency Response (+3dB) 70-24kHz
• HF Limit(-10dB) 44kHz
• Crossover Frequency 3.5kHz
• System Frequency 80Hz
• Dimensions (H x W x D) 280 x 290 x 132 (mm)
